JIG-GEL

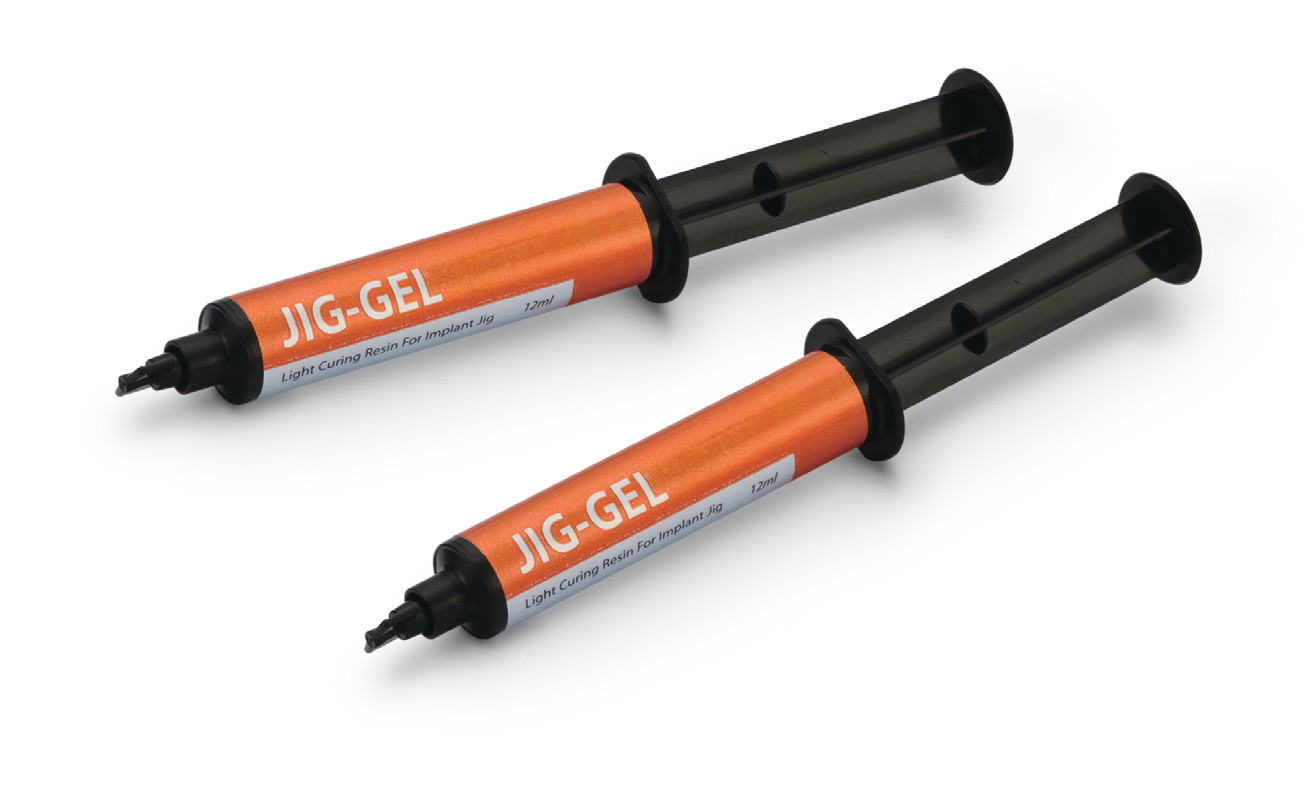

Light-curing resin gel for implant jigs. Odorless, easy to separate, and dimensionally stable.
Product Specifications
Spec Highlights
Light curing
10 sec
The catalog uses a 10-second light-curing condition for depth-of-cure testing.
Chamber curing
30 sec
A separate 30-second chamber-curing condition is also shown.
Depth of curing axis
0~5 mm
The printed graph exposes the range, not a single published measured value.
Yield point axis
0~1000 N
Compressive yield point is shown as an axis range in the catalog.
Workflow references
The catalog shows JIG-GEL as a syringe-driven workflow from injection to completed implant jig.
Build-up step
Clinical handling
Verification
Final jig
Key Features
Feature 01
Syringe type for easy application
Feature 02
Odorless and grinding-free
Feature 03
Optimal flow and low shrinkage
Indications
Implant Jig Fabrication
Verification Bar Fabrication
Process Conditions
Primary use
Implant jig and implant verification bar fabrication
The catalog positions JIG-GEL as a syringe-applied alternative to powder / liquid mixing.
Material format
Ready-to-use gel type syringe
No manual powder-liquid mixing step is disclosed.
Handling strengths
Optimum flow / little shrinkage / no resin odor
These are explicit handling claims in the printed catalog.
Property Coverage
Only the published axis ranges and curing conditions are shown below.
Published test range
Test item Published range Note
Depth of curing
0~5 mm axis / Light curing 10 sec / Chamber curing 30 sec
Axis and curing condition only
Compressive yield point
0~1000 N
Axis only in catalog
Flexural strength
0~80 MPa
Axis only in catalog
Elongation
0~16%
Axis only in catalog
Shrinkage rate
Negative % axis
Relative chart only
